Hot Air Circulating Industrial Oven High Temp Precise Drying Chamber

Name: Hot Air Circulating Industrial Oven High Temp Precise Drying Chamber
Brand: komeg
Price: 1 USD

Wholesale Hot Air Circulating Industrial Oven High Temp Precise Drying Chamber from china suppliers

Brand Name : komeg

Model Number : KOV-200

Certification : CE

Place of Origin : China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100pcs /day

Delivery Time : 30 day after confirm the order

Packaging Details : rigid poly foam and wooden box

Interior Size : w 600 x H 600 x D 600 cm

Exterior Size : W 960 × H 1360 ×D 800 mm

Temp Range : 50℃～200℃ Approx 50 Min ( no load )

Interior Material : Stainless steel

Exterior Material : Baked painting steel

Heating Method : PID+S.S.R

Contact Now

High Temperature Precise Drying Chamber Hot Air Circulating Drying Oven For Industrial

OEM and ODM are welcome ,kindly contact: anna@komegtech.com

Application

The chamber is applicable to the reliability test/production of industrial products. It has the characteristics of

temperature control accuracy and wide control range. The performance index complies with

GB5170.2.3.5.6-95 "High-Temperature Test Equipment for Basic Parameters Verification of Electrical and

Electronic Products Environmental Testing Equipment.

Ⅱ. Specifications
1.Air supply mode	Forced air circulation
2.Temperature Range	+20℃ ～ +220℃
3. Temp fluctuation	±0.5℃
4. Temp Uniformity	±2.0℃ (RT+20℃ ～ +100℃) ±3.0℃ (+101℃ ～ +200℃) ±4.0℃ (+201℃ ～ +220℃)
5. Heat up time	RT ～ + 220℃ 50min (no-load)
6. Control mode	PID+SSR output
7. Interior dimension	W600 × H 600 × D 600 mm
8. Exterior dimension	about W 960×H 1360 ×D 800 mm
9. Door	Silicone, single door
10. Materials:	interior material :SUS201# stainless steel； External material: high-quality carbon steel
11.Insulation materials:	glass fiber.
12. Heater	Fins radiator pipe shaped stainless steel electric heater
13.Temperature controller	Korea imported thermostat ST-570 * High precision (0.1%), high performance * Support multi imput (T / C, RTD, DCV) * Multi output and simultaneous output (Max 4 points) * Parameter operation is simple, the text can be set * Supports suppression of Overshoot function * Alarm output 1 point * Operation display of auxiliary output status * Input adjustment function for each zone (Max 4 Zone) * Control the heating and cooling functions * PID automatic adjustment function (AT Gain) * Supports multiple communication protocols (Modbus, etc.) * To achieve high quality, high reliability (CE, CUL, ISO, etc.)
14.Temperature measurement	K thermoelectric pairs
15. Work timer	Digital timer type 1, range 0 to 9999min (after the temperature is reached, timing starts, timing is completed, and operation stops)
16.Frame material	Two stainless steel partitions (adjustable height), 30kg/ply.
17. Protective device	Over-temperature protection, motor overload protection, buzzer, fault indicator, no fuse switch.
18. Accessory	Power cord 3 meters

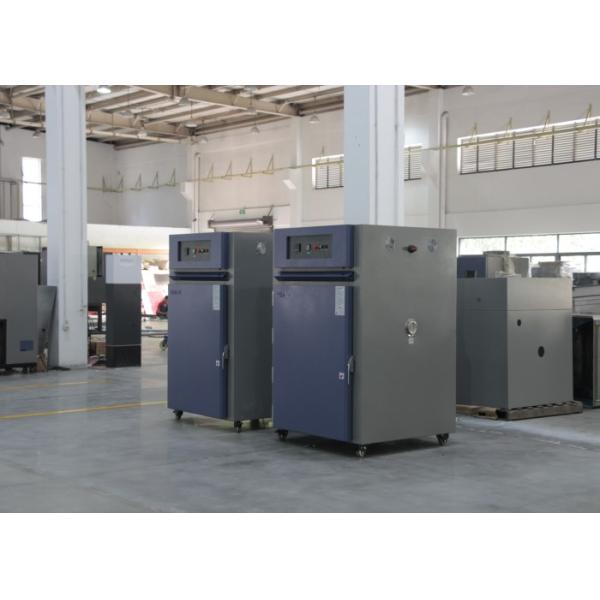

Photos show

Hot Air Circulating Industrial Oven High Temp Precise Drying Chamber
