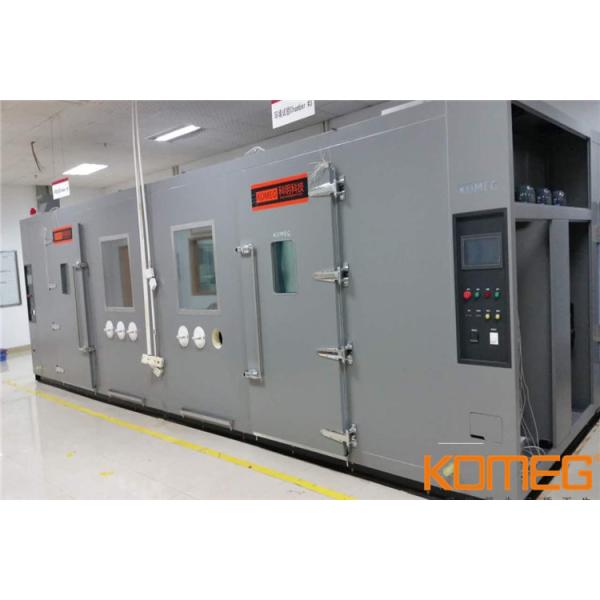

Professional Environmental Test Chamber , Alternating Temperature Humidity Test Chamber

Name: Professional Environmental Test Chamber Alternating Temperature Humidity Test Chamber
Brand: KOMEG
Price: 1 USD

Brand Name : KOMEG

Model Number : KMHW-4

Certification : CE/ROHS/FCC/

Place of Origin : China

MOQ : 1set

Price : negotiation

Payment Terms : T/T /C,D/A,D/P,T/T,Western Union,MoneyGram,In cash, escrow

Supply Ability : 50 sets per month

Delivery Time : 30 working days after received your payment

Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing

Product Name : Programmable Walk-in Test Chambers

Refrigeratuon system : water cooled

Volume(M3) : 9CBM

Temp. Constancy : +/-0.5oc

Humidity Constancy : +/-2.5%R.H

Delivery : 35 working days

Application : reliability testing, research & development testing, failure analysis

Contact Now

Professional Environmental Test Chamber , Alternating Temperature Humidity Test Chamber

1.Applicable Industry

The environmental condition test machine is consist of Control Panel, electrical panels, moisturizing plate blower, heater, humidifier, freezer. It provides a large spare to test the temperature and humidity for large-scale parts, semi-finished products, it applied to test products that large-scale or the quantity more, such as: Computer terminals, vehicle parts.

2.Corresponding standard:

1. GB11158 Technical conditions for high-temperature testing room
2. GB10589-89 Technical conditions for low-temperature testing room
3. GB/T10586-89 technical conditions for humidity testing room
4. GB/T2423.1-2001 testing methods for low-temperature
5. GB/T2423.2-2001 testing methods for high-temperature
6. GB/T2423.3-93 technical conditions for humidity testing room
7. GB/T2423.4-93 testing method for alternating hot and humid
8. IEC60068-2-1.1990 testing methods for low-temperature
9. IEC60068-2-2.1974 testing methods for high-temperature
10. GJB150.3 High-temperature test
11. GJB150.4 Low-temperature test
12. GJB150.9 muggy test
13. GB/T2423.22 temperature test

3. Main Technical Parameters

Model		KMHW-4(walk-in room)
Volume(m³)		9CBM
Interior Dimensions		W2100 x H2100 x D2050mm
Exterior Dimensions		W3250 x H2350 x D2250mm
Safety Devices(standard)		No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection
Standard accessories		Sight window1, cable port ( portΦ50mm ) 1, chamber lamp*1, status indicator
Control System		Balanced Temperature & Humidity Control System
Refrigeration system		Water Cooled
		Semi-hermetic compressor, single stage or cascade refrigeration system,
		CFC free refrigerant ( HFC-507 and HFC-23 )
Controller	Panel	7-inch LCD Touch panel, Chinese or English display selectable
	Operation model	Program or fix point running
	Memory capacity	120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles
	Accuracy	Temp.:0.1% of F.S ± 1 digit Humidity:0.1% of F.S ± 1 digit
	Input	Temp.: pt-100, Humidity: pt-100 or ～5V DCV
	Comm.port	RS-232 or RS-485 ( Softawre is option)
Temp. range		Maximum: 80 ºC,120 ºC; Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC
Humidity Range		10%, 20%, 30% ~ 95%
Temp. constancy		±0.5 ºC
Humidity constancy		±2.5%R.H
Temp. uniformity		±2.0 ºC
Humidity uniformity		±5.0%R.H
Ambient Temp.		+5 ºC～+35 ºC
Wiring method		AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires
Heat up time		+20 ºC～+80 ºC, Within 60 min
Pull down time		+20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min
Interior material		Stainless Steel Plate(SUS 304)
Exterior material		Baked Painting Steel Or Stainless steel ( SUS304)
Insulation material		Rigid polyurethane foam
Door size (mm)		Single wing: W800 x H1800; Double wing: W1600 x H1800;
Note:1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available

4. Features:

a. Touch panel for the convenient input of fixed values and programming with graphic depiction of nominal and real values, operating time, remaining cycles etc., including help functions
b. Programme memory for up to 100 programmes with a total of 1000 sections
c. Software support for potential-free inputs and outputs
d. Password protection, two-stage, to avoid unintentional alteration
e. Integrated limit value monitoring system for temperature and humidity
f. Inspection system provides information on malfunctions and collects operating time dat

5. The brand of the accessories:

6. Walk-in Room Internal Show

7. Related products:
