CE ISO Environmental Humidity Test Chamber For Balistic Product - 40～ +150℃

Name: CE ISO Environmental Humidity Test Chamber For Balistic Product 40 150
Brand: KOMEG
Price: 1 USD

Wholesale CE ISO Environmental Humidity Test Chamber For Balistic Product - 40～ +150℃ from china suppliers

Brand Name : KOMEG

Model Number : KM002

Certification : CE ISO

Place of Origin : CHINA

MOQ : one set

Price : negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100pcs /year

Delivery Time : 35 day after confirm the order

Packaging Details : rigid poly foam and wooden box

Temp Range : -40℃ ～ +150℃

Temp Deviation : ≦ ± 2.0℃

Temp Fluctuation : ±0.5℃

Insulation Material : Rigid Foam +glass Fiber

Contact Now

Environmental Humidity Test Chamber For Balistic Product - 40～ +150℃ CE Mark

Application

High And Low Temperature chamber could used to test the application and the adaptability of the electronic products, assembles and materials under the low temperature, constant temperature and temperature cyclic change conditions.

Features

● GB-2423.1-2008(IEC68-2-1)Test A: Low Temperature Test

● GB-2423.2-2008(IEC68-2-2)Test B: High Temperature Test

● GJB360.8-2009(MIL-STD.202F) High Temperature Life Test

● GJBl50.3-2009(MIL-STD-810D) High Temperature Test

● GJBl50. 4-2009(MIL-STD-810D) Low Temperature Test

Main Technical Specifications

Temp. range	-40℃ ～ +150℃
Temp. deviation	≤±2.0℃
Temp. fluctuation	±0.5℃
Temp. uniformity	≦2.0℃
Heating and cooling rate	Heating up rate: from -40℃ to +100℃ 45min (no load ,enviromental temp +25℃) Cooling down: from +20℃ down to -40℃ approx 60min (no load,enviromental temp +25℃)
Chamber size	inner W 700 × H 750 × D800 mm Exterior Size W 900 × H 1785 × D 1860 mm
Insluation box	wall material: high-quality carbon steel inner wall material: SUS304 # matte stainless steel plate Insulation materials: rigid polyurethane foam insulation layer + glass fiber
Door	Single door,Left open , heating wire is installed at the door frames to prevent condensation at low temperatures
Obverstion Window	installed on the door,size: W210XH270MM multi-hollow electric insulation coated glass prevent condensation effectively
Lighting Device	1 PC 11W/AS220V installed in the inspection window

Others specification

Heating	High quality nickel-chromium alloy wire electric heaters, Non-contact control mode(SSR)
Water outlet hole	Available for drain the condensate water
Cable port	φ100mm*1 located on the left of chamber, with rubber stopper and stainless steel cover
Mobile Casters	Mobile Casters with foot cups
Electric control box	Total power circuit breaker, over-temperature protection.
Explosive pressure release device	When the pressure in the equipment or pipeline exceeds the safety valve pressure relief automatically open Equipped: Bursting disc, shield, sensor switch Function: a.When the test samples in the box explode, there is a pressure release pipe B.Protect the test equipment from sudden air pressure damage C. Protect people
Ventilator	When the pressure in the equipment or pipeline exceeds the ventilator automatically open

Our Services

1) More than 28 years manufacturer experience and 8 years export experience.

2) Acceptable customization for all kinds of special specification products.

3) We value very inquiry sent to us, ensure quick and competitive offer.

4) We put your order into our tight production schedule, ensure your punctual delivery time.

5) We are a sales team, with more than 4 years experience, more professional and reliable.

6) Welcome to view our factory at any moment.

Company Information

Since 1990,we went into the environmental test chambers industry. In 1990 we established our own factory,Dongguan Komeg Technology Co., Ltd., which has become an important manu-facturer of environmental friendly test chambers.

Our main products include Temperature Humidity Test Chamber, Thermal Shock Chamber, Walk in Stability Chamber, LCM(LAD)Aging Chamber, Hot Oven, Salt Spray Tester, Steam Aging Chamber, etc.

Photos show

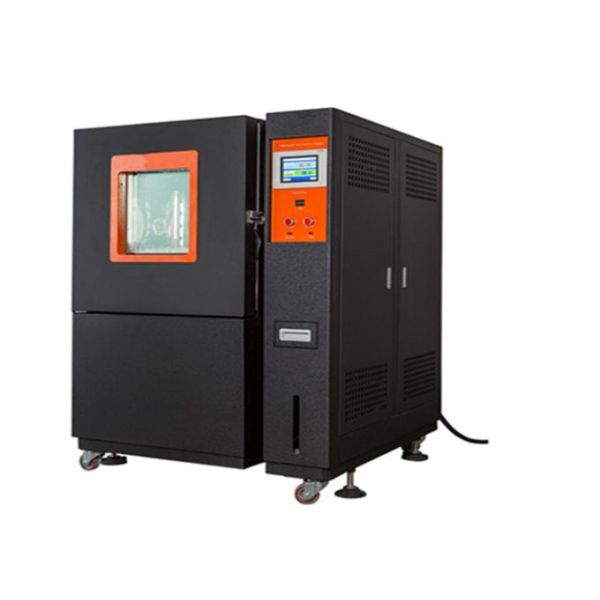

CE ISO Environmental Humidity Test Chamber For Balistic Product - 40～ +150℃
