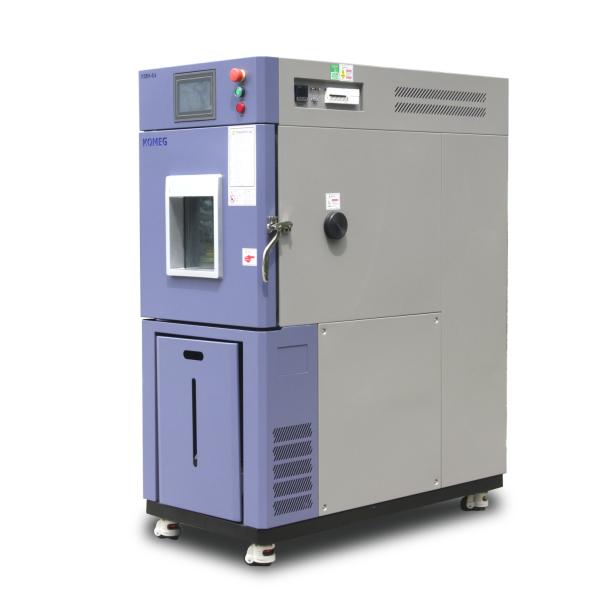

Chamber Inside size: W 400 × H 400 × D 400 mm 64 L Temperature And Humidity Chamber
Product Overview
Able to accurately simulate a wide range of complicated natural environments, and is suitable for
reliability test in industrial products. Meet GB5170.2.3.5.6-95 standard requirements of environmental
testing equipment and test methods for the basic parameters of electric and electronic products under
the condition of humidity, low temperature, high temperature, and constant heat.
Application
Applicable to environmental adaptability and reliability test in such industrial units as electronics, electrical
appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research
institution, inspection and quarantine bureau, university etc..
Specifications
| 1.1Temperature range | -20℃ ～ +150℃ |
| 1.2 Temp Deviation | ≦±2.0℃ |
| 1.3Temp Fluctuation | ±0.5℃ |
| 1.4Temp Uniformity | ≦2.0℃ |
| 1.5 Ramping and soaking rate | Heating up rate: -20℃ to +100℃ about 35 min (no-load, ambient temperature +25℃) Cooling rate:: +20℃ to -20℃ about 45 min (no-load, ambient temperature +25℃) |
| 2. Humidity |
| 2.1 Humidity range | 20～98%R.H |
| 2.2 Control range | |
| 2.3Humidity deviation | ±3.0％RH(＞75％RH) ±5.0％RH(≤75％RH) |
| 2.4Humidity uniformity | ±3.0％RH(no-load) |
| 2.5Humidity fluctuation | ±2.0％RH |
| Temperature and humidity performance test is in accordance with the relevant provisions of the IEC60068 -3 standard measurement; sensor placed in the unit outlet. |
| Ⅴ. Chamber Structure |
| Overall structure and chamber was composed of three parts as below. Insulation box, separate refrigeration units, and electrical control cabinet. |
| 1.Chamber size | Workspace volume: W 400 × H 400 × D 400 mm Exterior size: W 600 × H 1570 × D 1200 mm (not including the machine protruding part) |
| 2. Insulation box | Wall material: high-quality carbon steel with static color spray Inner wall material: SUS304 # matte stainless steel plate Insulation materials: rigid polyurethane foam insulation layer + glass fiber. |
- Door
| Single door, left open. Heating wire was installed at the door frames to prevent condensation at low temperatures. |
| 4.Observation window | With observation windowW210×H230mm, multi-hollow electric insulation coated glass prevent condensation effectively |
| 5．Lighting device | 11W/AC220V *1 located on observation window |
| 6. Heating | High quality nickel-chromium alloy wire electric heaters, Non-contact control mode(SSR) |
| 7. Humidifier | Water basin heating and humidification method; Stainless steel sheathed heater; Heater control: no-contact control (SSR); Water level control device, heater anti-dry device. |
| 8. Water outlet hole | Available for drain the condensate water |
| 9. Cable port | Φ50mm*1 located on each side of chamber, with rubber stopper and stainless steel cover |
| 10. Shelf for samples | Two layers of stainless steel sample holder. Adjustable, load capacity 30kg/ layer |
| 11. Mobile Casters | Mobile Casters with foot cups |
| 12.Electric control box | Total power circuit breaker, over-temperature protection. |
| 13. Water supply system | Water pump automatic supply |
Product details
Packing and Shipment:
(1).Strong standard wood case, inner plastic films wrapped for temperature and humidity test chamber
(2).Usually we delivery the equipment by air,by sea or by express. it depends on customer.
After-sales Service and Training
Charge-free warranty will last for 1 year from the date of equipment acceptance. After the warranty
period, the user will be charged properly. Irregular examination and life-long service are available;
Note: If needed, provide 2 operators for on-site installation and training
